ELECTRICAL ENCLOSURES
| Height" | Depth" | Length" | Catalog Number | Description | Weight | List Price | UPC_12Digit |
|---|---|---|---|---|---|---|---|

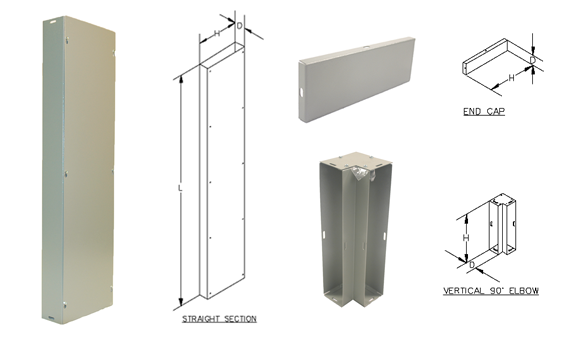

| 10 | 3.5 | 12 | 1-103X | PAINTED X-RAY DUCT TYPE 1 | 7 | $57.74 | 806101013037 |
| 10 | 3.5 | 24 | 2-103X | PAINTED X-RAY DUCT TYPE 1 | 15 | $73.72 | 806101013044 |
| 10 | 3.5 | 36 | 3-103X | PAINTED X-RAY DUCT TYPE 1 | 22 | $110.42 | 806101013051 |
| 10 | 3.5 | 48 | 4-103X | PAINTED X-RAY DUCT TYPE 1 | 30 | $149.18 | 806101013068 |
| 10 | 3.5 | 60 | 5-103X | PAINTED X-RAY DUCT TYPE 1 | 37 | $182.32 | 806101013075 |
| 10 | 3.5 | 72 | 6-103X | PAINTED X-RAY DUCT TYPE 1 | 45 | $221.30 | 806101013082 |
| 10 | 3.5 | 84 | 7-103X | PAINTED X-RAY DUCT TYPE 1 | 52 | $257.74 | 806101013099 |
| 10 | 3.5 | 96 | 8-103X | PAINTED X-RAY DUCT TYPE 1 | 60 | $291.30 | 806101013105 |
| 10 | 3.5 | 120 | 10-103X | PAINTED X-RAY DUCT TYPE 1 | 73 | $355.94 | 806101013112 |

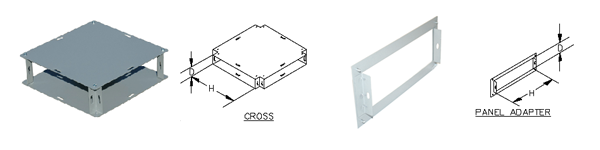

| 10-CX | PAINTED CROSS FOR X-RAY DUCT TYPE 1 | 8 | $122.96 | 806101013129 | |||
| 10-ECX | PAINTED END CAP FOR X-RAY DUCT TYPE 1 | 1 | $12.52 | 806101013181 | |||

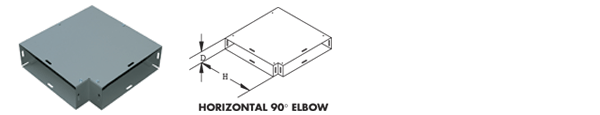

| 10-H90L | PAINTED HORIZONTAL 90L FOR X-RAY DUCT TYPE 1 | 8 | $105.76 | 806101013150 | |||

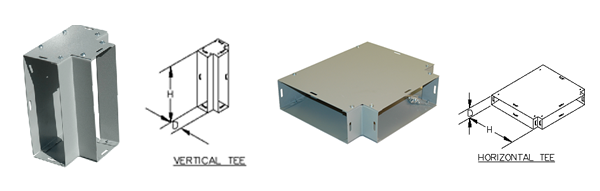

| 10-HT | PAINTED HORIZONTAL TEE FOR X-RAY DUCT TYPE 1 | 7 | $112.82 | 806101013136 | |||
| 10-PAX | PAINTED PANEL ADAPTER FOR X-RAY DUCT TYPE 1 | 2 | $36.86 | 806101013204 | |||
| 10-UCX | PAINTED U CONNECTOR FOR X-RAY DUCT TYPE 1 | 1 | $10.00 | 806101013198 | |||
| 10-V90L | PAINTED VERTICAL 90L FOR X-RAY DUCT TYPE 1 | 7 | $87.34 | 806101013167 | |||
| 10-VT | PAINTED VERTICAL TEE FOR X-RAY DUCT TYPE 1 | 7 | $100.00 | 806101013143 | |||
| 60-D | 60 IN. DIVIDER FOR X-RAY DUCT TYPE 1 | 5 | $27.12 | 806101013174 | |||
| 18 | 3.5 | 12 | 1-183X | PAINTED X-RAY DUCT TYPE 1 | 12 | $77.00 | 806101013211 |
| 18 | 3.5 | 24 | 2-183X | PAINTED X-RAY DUCT TYPE 1 | 23 | $128.24 | 806101013228 |
| 18 | 3.5 | 36 | 3-183X | PAINTED X-RAY DUCT TYPE 1 | 35 | $150.48 | 806101013235 |
| 18 | 3.5 | 48 | 4-183X | PAINTED X-RAY DUCT TYPE 1 | 47 | $200.22 | 806101013242 |
| 18 | 3.5 | 60 | 5-183X | PAINTED X-RAY DUCT TYPE 1 | 58 | $231.96 | 806101013259 |
| 18 | 3.5 | 72 | 6-183X | PAINTED X-RAY DUCT TYPE 1 | 70 | $308.00 | 806101013266 |
| 18 | 3.5 | 84 | 7-183X | PAINTED X-RAY DUCT TYPE 1 | 81 | $359.70 | 806101013273 |
| 18 | 3.5 | 96 | 8-183X | PAINTED X-RAY DUCT TYPE 1 | 93 | $400.24 | 806101013280 |
| 18 | 3.5 | 120 | 10-183X | PAINTED X-RAY DUCT TYPE 1 | 117 | $451.96 | 806101013297 |
| 18-CX | PAINTED CROSS FOR X-RAY DUCT TYPE 1 | 24 | $230.00 | 806101013303 | |||
| 18-ECX | PAINTED END CAP FOR X-RAY DUCT TYPE 1 | 2 | $20.20 | 806101013365 | |||
| 18-H90L | PAINTED HORIZONTAL 90L FOR X-RAY DUCT TYPE 1 | 23 | $175.16 | 806101013334 | |||
| 18-HT | PAINTED HORIZONTAL TEE FOR X-RAY DUCT TYPE 1 | 23 | $189.50 | 806101013310 | |||
| 18-PAX | PAINTED PANEL ADAPTER FOR X-RAY DUCT TYPE 1 | 3 | $48.78 | 806101013396 | |||
| 18-RX | PAINTED 18 TO 10 REDUCER FOR X-RAY DUCT TYPE 1 | 2 | $49.20 | 806101013389 | |||
| 18-UCX | PAINTED U CONNECTOR FOR X-RAY DUCT TYPE 1 | 2 | $19.00 | 806101013372 | |||
| 18-V90L | PAINTED VERTICAL 90L FOR X-RAY DUCT TYPE 1 | 11 | $159.74 | 806101013341 | |||
| 18-VT | PAINTED VERTICAL TEE FOR X-RAY DUCT TYPE 1 | 23 | $183.04 | 806101013327 | |||
| 60-D | 60 IN. DIVIDER FOR X-RAY DUCT TYPE 1 | 5 | $27.12 | 806101013174 |
