Galvanized Painted Panels for Type 4, 12 and 3R Enclosures

wGalvanized Painted Panels for Type 4, 12 and 3R Enclosures

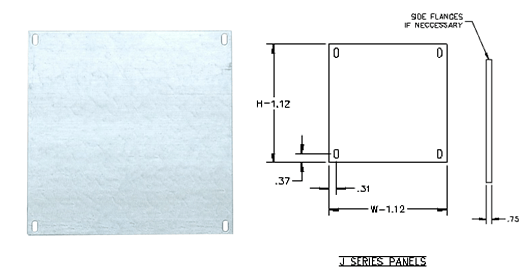

J Series Panels

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Catalog Number	Weight	UPC_12Digit
6	4	G64PJ	1	806101022251
6	6	G66PJ	1	806101022268
8	6	G86PJ	1	806101022275
8	8	G88PJ	1	806101022282
10	8	G108PJ	1	806101022299
10	10	G1010PJ	2	806101022305
12	6	G126PJ	1	806101022312
12	10	G1210PJ	2	806101022329
12	12	G1212PJ	3	806101022336
14	8	G148PJ	3	806101022343
14	12	G1412PJ	3	806101022350
16	10	G1610PJ	3	806101022367
16	14	G1614PJ	5	806101022374

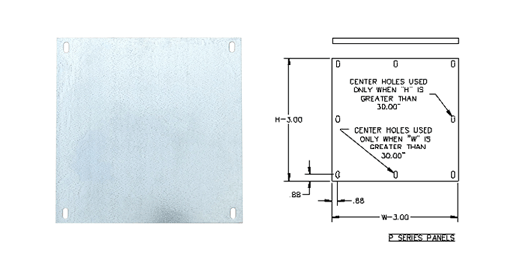

P Series Panels

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Catalog Number	Weight	UPC_12Digit
16	12	G1612P	4	806101022381
16	16	G1616P	6	806101022398
20	12	G2012P	5	806101022404
20	16	G2016P	9	806101022411
20	20	G2020P	10	806101022428
24	12	G2412P	7	806101022435
24	16	G2416P	9	806101022442
24	18	G2418P	12	806101022459
24	20	G2420P	13	806101022466
24	24	G2424P	15	806101022473
30	16	G3016P	12	806101022480
30	20	G3020P	16	806101022497
30	24	G3024P	19	806101022503
30	30	G3030P	19	806101022510
36	16	G3616P	14	806101022527
36	24	G3624P	24	806101022534
36	30	G3630P	30	806101022541
36	36	G3636P	37	806101022558
40	24	G4024P	40	806101022565
42	24	G4224P	25	806101022572
42	30	G4230P	35	806101022589
42	36	G4236P	43	806101022596
42	42	G4242P	50	806101022602
48	24	G4824P	31	806101022619
48	30	G4830P	40	806101022626
48	36	G4836P	49	806101022633
48	48	G4848P	80	806101022640
60	24	G6024P	50	806101022657
60	30	G6030P	50	806101022664
60	36	G6036P	61	806101022671
72	36	G7236P	74	806101022695
