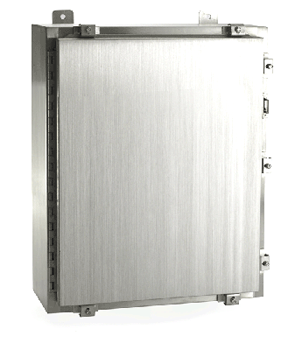

Type 4X Aluminum Single Door Continuous Hinge Enclosures

Type 4X Aluminum Single Door Continuous Hinge Enclosures - Less Panel

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	List Price	UPC_12Digit	Aluminum Panel Catalog Number	List Price	Weight	UPC_12Digit
16	12	6	A16126N4X	9	603.25	806101019275	A1612P	36.47	1	806101023203
20	16	6	A20166N4X	13	708.66	806101019282	A2016P	55.07	3	806101023210
20	20	6	A20206N4X	16	749.30	806101019299	A2020P	67.34	4	806101023227
24	20	6	A24206N4X	18	834.39	806101019305	A2420P	111.76	5	806101023234
24	24	8	A24248N4X	22	965.20	806101019312	A2424P	129.82	6	806101023241
30	24	8	A30248N4X	26	1082.04	806101019329	A3024P	156.21	7	806101023258
36	24	8	A36248N4X	29	1197.61	806101019336	A3624P	184.30	9	806101023265
36	30	8	A36308N4X	38	1356.36	806101019343	A3630P	221.03	11	806101023272
48	36	8	A48368N4X	56	1836.42	806101019350	A4836P	348.62	19	806101023289
20	16	10	A201610N4X	16	796.29	806101019367	A2016P	55.07	3	806101023210
24	20	10	A242010N4X	22	941.07	806101019374	A2420P	111.76	5	806101023234
30	24	12	A302412N4X	32	1211.58	806101019381	A3024P	156.21	7	806101023258
36	30	12	A363012N4X	44	1517.65	806101019398	A3630P	221.03	11	806101023272
60	36	12	A603612N4X	76	2387.60	806101019404	A6036P	439.37	24	806101023296
