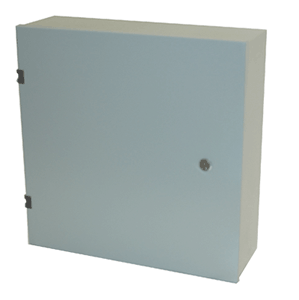

Type 4 Hinged Enclosure

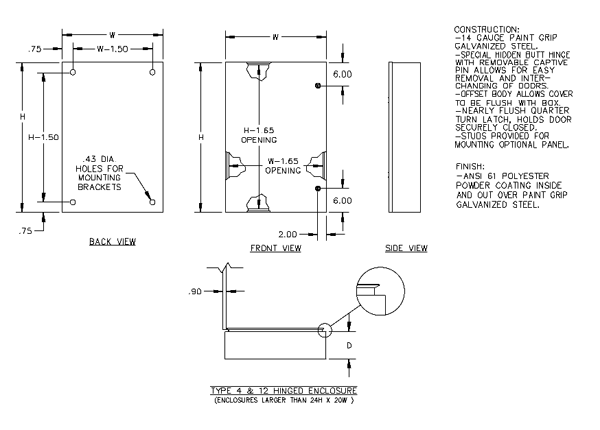

Type 4 and Type 12 Hinged Enclosures

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	List Price	UPC_12Digit	Panel Catalog Number	List Price	Weight	UPC_12Digit
12	12	6	12126N412	15	199.89	806101026976	1212P	17	3	806101030287
16	12	6	16126N412	22	213.35	806101027003	1612P	19.50	4	806101022831
16	16	6	16166N412	27	229.86	806101027034	1616P	24.00	6	806101022848
16	20	6	16206N412	31	246.32	806101027065	1620P	28.50	9	806101030294
20	16	6	20166N412	31	246.32	806101027096	2016P	28.50	9	806101022862
20	20	6	20206N412	36	265.80	806101027133	2020P	34.42	10	806101022879
24	12	6	24126N412	30	249.47	806101027171	2412P	28.72	7	806101022886
24	16	6	24166N412	37	262.82	806101027195	2416P	33.50	9	806101022893
24	20	6	24206N412	42	285.27	806101027232	2420P	44.96	13	806101022916
24	24	6	24246N412	48	307.78	806101027270	2424P	50.22	15	806101022923
30	20	6	30206N412	51	324.75	806101027324	3020P	52.64	16	806101021452
30	24	6	30246N412	58	356.66	806101027362	3024P	63.04	19	806101022954
30	30	6	30306N412	70	384.55	806101027409	3030P	77.50	19	806101021476
36	24	6	36246N412	69	389.74	806101027447	3624P	75.98	24	806101022985
36	30	6	36306N412	84	437.06	806101027478	3630P	99.16	30	806101022992
36	36	6	36366N412	88	471.87	806101027515	3636P	116.02	37	806101023005
12	12	8	12128N412	16	201.56	806101026983	1212P	17	3	806101030287
16	12	8	16128N412	24	223.86	806101027010	1612P	19.50	4	806101022831
16	16	8	16168N412	31	241.83	806101027041	1616P	24.00	6	806101022848
16	20	8	16208N412	36	259.82	806101027072	1620P	28.50	9	806101030294
20	16	8	20168N412	34	259.82	806101027102	2016P	28.50	9	806101022862
20	20	8	20208N412	40	280.79	806101027140	2020P	34.42	10	806101022879
20	24	8	20248N412	53	301.75	806101027164	2024P	44.96	13	806101030300
24	16	8	24168N412	40	277.79	806101027201	2416P	33.50	9	806101022893
24	20	8	24208N412	46	301.75	806101027249	2420P	44.96	13	806101022916
24	24	8	24248N412	52	325.75	806101027287	2424P	50.22	15	806101022923
24	30	8	24308N412	63	361.70	806101027300	2430P	63.04	19	806101030317
30	20	8	30208N412	55	333.20	806101027331	3020P	52.64	16	806101021452
30	24	8	30248N412	63	361.70	806101027379	3024P	63.04	19	806101022954
30	30	8	30308N412	75	404.41	806101027416	3030P	77.50	19	806101021476
36	24	8	36248N412	72	397.67	806101027454	3624P	75.98	24	806101022985
36	30	8	36308N412	90	447.14	806101027485	3630P	99.16	30	806101022992
36	36	8	36368N412	102	496.53	806101027522	3636P	116.02	37	806101023005
16	12	10	161210N412	25	252.65	806101026990	1612P	19.50	4	806101022831
16	16	10	161610N412	37	264.26	806101027027	1616P	24.00	6	806101022848
16	20	10	162010N412	41	290.74	806101027058	1620P	28.50	9	806101030294
20	16	10	201610N412	38	290.74	806101027089	2016P	28.50	9	806101022862
20	20	10	202010N412	44	314.89	806101027119	2020P	34.42	10	806101022879
20	24	10	202410N412	58	339.04	806101027157	2024P	44.96	13	806101030300
24	16	10	241610N412	45	624.66	806101027188	2416P	33.50	9	806101022893
24	20	10	242010N412	50	339.04	806101027218	2420P	44.96	13	806101022916
24	24	10	242410N412	56	365.97	806101027256	2424P	50.22	15	806101022923
24	30	10	243010N412	68	405.92	806101027294	2430P	63.04	19	806101030317
30	20	10	302010N412	61	750.53	806101027317	3020P	52.64	16	806101021452
30	24	10	302410N412	68	405.92	806101027348	3024P	63.04	19	806101022954
30	30	10	303010N412	80	448.64	806101027386	3030P	77.50	19	806101021476
36	24	10	362410N412	78	447.72	806101027423	3624P	75.98	24	806101022985
36	30	10	363010N412	96	501.59	806101027461	3630P	99.16	30	806101022992
36	36	10	363610N412	109	557.32	806101027492	3636P	116.02	37	806101023005
20	20	12	202012N412	49	310.78	806101027126	2020P	34.42	10	806101022879
24	20	12	242012N412	54	334.75	806101027225	2420P	44.96	13	806101022916
24	24	12	242412N412	61	361.70	806101027263	2424P	50.22	15	806101022923
30	24	12	302412N412	73	402.15	806101027355	3024P	63.04	19	806101022954
30	30	12	303012N412	89	449.37	806101027393	3030P	77.50	19	806101021476
36	24	12	362412N412	102	442.63	806101027430	3624P	75.98	24	806101022985
36	36	12	363612N412	117	550.48	806101027508	3636P	116.02	37	806101023005
OPTIONAL	EXTERNAL	MOUNTING FEET	MK KIT		37.33
