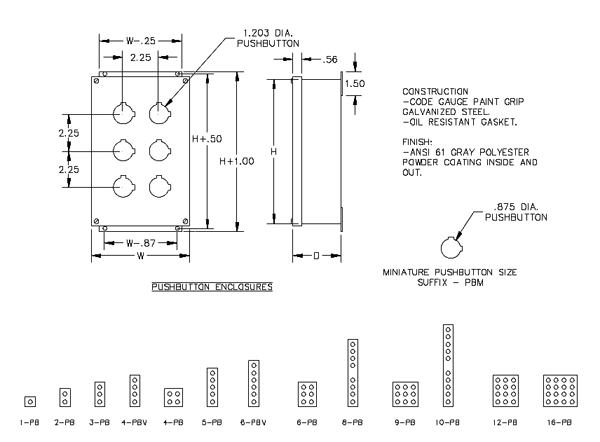

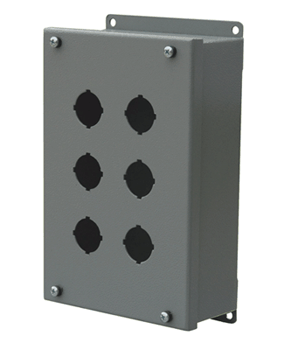

Type 12 Standard Push Button Enclosures

Call Factory for Cut Sheet

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Description	Weight	List Price	UPC_12Digit
3.5	3.25	2.75	1PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	2	39.52	806101021001
5.75	3.25	2.75	2PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	2	45.20	806101021018
8	3.25	2.75	3PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	3	56.33	806101021025
7.25	6.25	3	4-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	4	61.72	806101021049
10.25	3.25	2.75	4-PBV	PAINTED STD PUSH BUTTON VERTICAL ENCLOSURE TYPE 12	4	56.62	806101021032
12.5	3.25	2.75	5-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	5	68.84	806101021056
9.5	6.25	3	6-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	7	70.42	806101021063
14.75	3.25	2.75	6-PBV	PAINTED STD PUSH BUTTON VERTICAL ENCLOSURE TYPE 12	7	67.98	806101021070
20.25	3.25	2.75	8-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	8	90.42	806101021087
9.5	8.5	3	9-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	8	82.52	806101021094
24.75	3.25	2.75	10-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	8	102.85	806101021100
11.75	8.5	3	12-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	9	93.46	806101021117
11.75	10.75	3	16-PB	PAINTED STD PUSH BUTTON ENCLOSURE TYPE 12	11	106.88	806101021124
