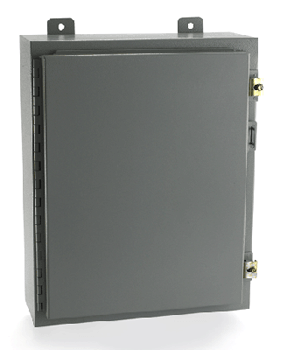

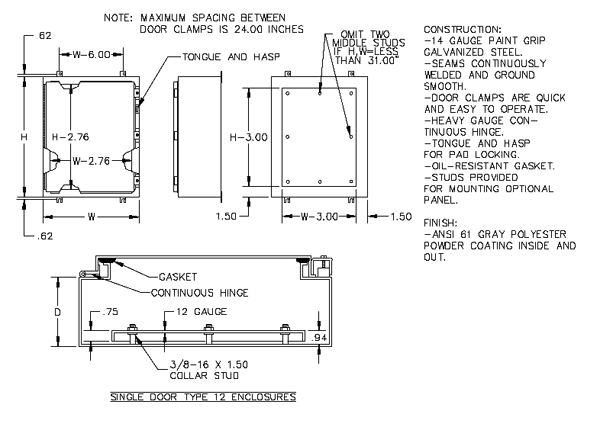

Type 12 Single Door Painted Enclosures

Type 12 Single Door Painted Enclosures - Less Panel

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	List Price	UPC_12Digit	Panel Catalog Number	List Price	Weight	UPC_12Digit
16	12	6	16126N12	22	219.47	806101016946	1612P	20.48	4	806101022831
16	16	6	16166N12	27	236.27	806101016953	1616P	25.20	6	806101022848
16	20	6	16206N12	31	266.41	806101016960	1620P	29.93	9	806101030294
20	12	6	20126N12	22	244.44	806101016977	2012P	25.17	5	806101022855
20	16	6	20166N12	31	249.40	806101016984	2016P	29.93	9	806101022862
20	20	6	20206N12	36	269.70	806101016991	2020P	36.14	10	806101022879
24	12	6	24126N12	30	247.49	806101017004	2412P	30.16	7	806101022886
24	16	6	24166N12	37	275.84	806101017011	2416P	35.18	9	806101022893
24	20	6	24206N12	42	293.90	806101017028	2420P	47.21	13	806101022916
24	24	6	24246N12	48	315.00	806101017035	2424P	52.73	15	806101022923
30	20	6	30206N12	51	328.40	806101017042	3020P	55.27	16	806101021452
30	24	6	30246N12	58	360.68	806101017059	3024P	66.19	19	806101022954
36	24	6	36246N12	69	388.92	806101017066	3624P	79.78	24	806101022985
36	30	6	36306N12	84	457.74	806101017073	3630P	104.12	30	806101022992
16	12	8	16128N12	24	230.03	806101017080	1612P	20.48	4	806101022831
16	16	8	16168N12	31	261.33	806101017097	1616P	25.20	6	806101022848
20	16	8	20168N12	34	267.23	806101017103	2016P	29.93	9	806101022862
20	20	8	20208N12	40	297.42	806101017110	2020P	36.14	10	806101022879
24	12	8	24128N12	27	274.70	806101017127	2412P	28.72	7	806101022886
24	16	8	24168N12	40	300.71	806101017134	2416P	35.18	9	806101022893
24	20	8	24208N12	46	305.91	806101017141	2420P	47.21	13	806101022916
24	24	8	24248N12	52	333.21	806101017158	2424P	52.73	15	806101022923
30	20	8	30208N12	55	341.21	806101017165	3020P	55.27	16	806101021452
30	24	8	30248N12	63	370.19	806101017172	3024P	66.19	19	806101022954
30	30	8	30308N12	75	420.00	806101017189	3030P	81.38	19	806101021476
36	24	8	36248N12	72	410.55	806101017196	3624P	79.78	24	806101022985
36	30	8	36308N12	90	452.57	806101017202	3630P	104.12	30	806101022992
36	36	8	36368N12	102	538.29	806101017219	3636P	121.82	37	806101023005
42	24	8	42248N12	76	469.69	806101017226	4224P	90.91	25	806101023029
42	30	8	42308N12	101	531.01	806101017233	4230P	118.04	35	806101023036
42	36	8	42368N12	119	592.13	806101017240	4236P	136.50	43	806101023043
48	30	8	48308N12	113	577.11	806101017257	4830P	133.62	40	806101023074
48	36	8	48368N12	113	604.28	806101017264	4836P	157.82	49	806101023081
60	36	8	60368N12	160	735.59	806101017271	6036P	189.44	61	806101023128
16	12	10	161210N12	25	256.83	806101017288	1612P	20.48	4	806101022831
20	16	10	201610N12	38	278.15	806101017295	2016P	29.93	9	806101022862
20	20	10	202010N12	44	320.37	806101017301	2020P	36.14	10	806101022879
24	20	10	242010N12	50	325.23	806101017318	2420P	47.21	13	806101022916
24	24	10	242410N12	56	372.29	806101017325	2424P	52.73	15	806101022923
30	24	10	302410N12	68	397.70	806101017332	3024P	66.19	19	806101022954
36	24	10	362410N12	78	455.56	806101017349	3624P	79.78	24	806101022985
36	30	10	363010N12	96	488.31	806101017356	3630P	104.12	30	806101022992
42	30	10	423010N12	108	560.25	806101017363	4230P	118.04	35	806101023036
42	36	10	423610N12	126	623.36	806101017370	4236P	136.50	43	806101023043
48	30	10	483010N12	120	570.80	806101017387	4830P	133.62	40	806101023074
48	36	10	483610N12	141	659.61	806101017394	4836P	157.82	49	806101023081
60	36	10	603610N12	169	765.09	806101017400	6036P	189.44	61	806101023128
20	16	12	201612N12	40	310.46	806101017417	2016P	29.93	9	806101022862
24	20	12	242012N12	54	362.51	806101017424	2420P	47.21	13	806101022916
24	24	12	242412N12	61	391.97	806101017431	2424P	52.73	15	806101022923
30	24	12	302412N12	73	435.84	806101017448	3024P	66.19	19	806101022954
30	30	12	303012N12	89	487.13	806101017455	3030P	81.38	19	806101021476
36	24	12	362412N12	83	452.63	806101017462	3624P	79.78	24	806101022985
36	30	12	363012N12	102	504.00	806101017479	3630P	104.12	30	806101022992
36	36	12	363612N12	117	600.05	806101017486	3636P	121.82	37	806101023005
42	30	12	423012N12	115	592.81	806101017493	4230P	118.04	35	806101023036
42	36	12	423612N12	132	655.27	806101017509	4236P	136.50	43	806101023043
48	36	12	483612N12	148	668.45	806101017516	4836P	150.30	49	806101023081
60	36	12	603612N12	178	777.46	806101017523	6036P	157.82	61	806101023128
72	36	12	723612N12	221	937.84	806101017530	7236P	235.95	74	806101023135
24	20	16	242016N12	60	398.38	806101017547	2420P	44.96	13	806101022916
30	24	16	302416N12	82	483.02	806101017554	3024P	66.19	19	806101022954
36	30	16	363016N12	106	577.94	806101017561	3630P	104.12	30	806101022992
48	36	16	483616N12	164	733.97	806101017578	4836P	150.30	49	806101023081
60	36	16	603616N12	121	892.94	806101017585	6036P	157.82	61	806101023128
36	30	20	363020N12	121	892.94	806101017592	3630P	104.12	30	806101022992
48	36	20	483620N12	172	851.01	806101017608	4836P	150.30	49	806101023081
60	36	20	603620N12	208	987.86	806101017615	6036P	157.82	61	806101023128
