Type 12 Single Door Flush Mount Painted Enclosures

1-888-231-7580 TOLL FREE PHONE < ----- > 1-888-329-3269 TOLL FREE FAX

ELECTRICAL ENCLOSURES

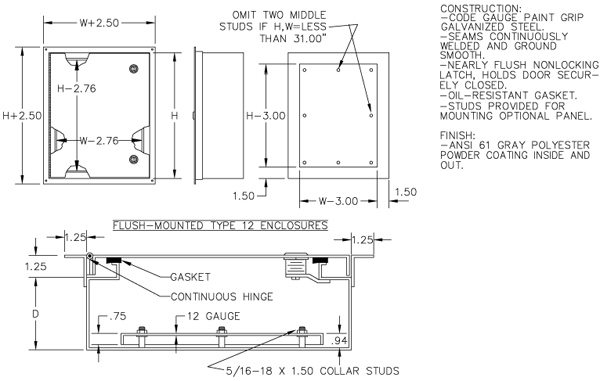

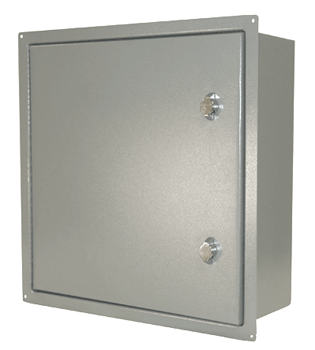

Type 12 Single Door Flush Mount Painted Enclosures - Less Panel

for large quantities call factory --- for custom sizes call factory

Height"	Width"	Depth"	Catalog Number	Weight	List Price	UPC_12Digit	Panel Catalog Number	List Price	Weight	UPC_12Digit
16	12	6	16126FMN12	27	295.22	806101017622	1612P	19.50	4	806101022831
20	16	6	20166FMN12	38	347.33	806101017639	2016P	28.50	9	806101022862
20	20	6	20206FMN12	44	368.88	806101017646	2020P	34.42	10	806101022879
24	20	6	24206FMN12	50	395.95	806101017653	2420P	44.96	13	806101022916
24	24	8	24248FMN12	61	452.06	806101017660	2424P	50.22	15	806101022923
30	24	8	30248FMN12	73	502.05	806101017677	3024P	63.04	19	806101022954
36	24	8	36248FMN12	83	577.29	806101017684	3624P	75.98	24	806101022985
36	30	8	36308FMN12	104	658.60	806101017691	3630P	99.16	30	806101022992
