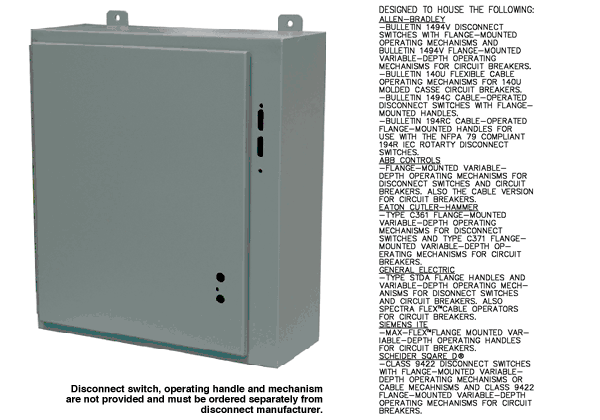

Type 12 Flange Mounted Disconnect Enclosures

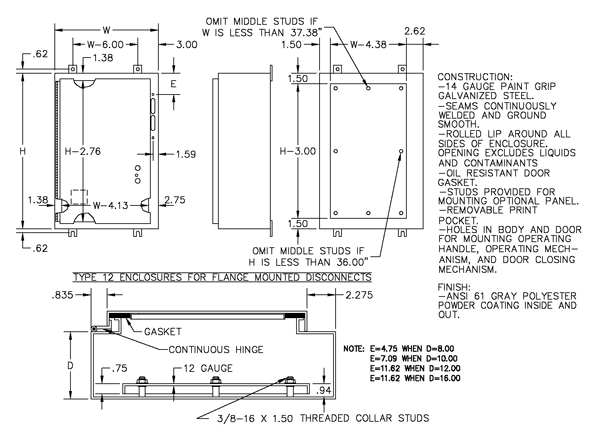

Type 12 Flange Mounted Disconnect Cut Sheet

							Panel
Height"	Width"	Depth"	Catalog Number	Weight	List Price	UPC_12Digit	Catalog Number	List Price	Weight	UPC_12Digit
20	21.38	8	20228FDN12	42	339.91	806101030324	2020P	34.42	10	806101022879
24	21.38	8	24228FDN12	48	349.61	806101030331	2420P	44.96	13	806101022916
24	25.38	8	24268FDN12	54	380.81	806101030348	2424P	50.22	15	806101022923
30	21.38	8	30228FDN12	57	389.95	806101030355	3020P	52.64	16	806101021452
30	25.38	8	30268FDN12	65	423.07	806101030362	3024P	63.04	19	806101022954
36	25.38	8	36268FDN12	75	469.20	806101030379	3624P	75.98	24	806101022985
36	31.38	8	36328FDN12	93	517.22	806101030386	3630P	99.16	30	806101022992
42	31.38	8	42328FDN12	104	606.86	806101030393	4230P	112.42	35	806101023036
42	37.38	8	42388FDN12	122	676.72	806101030409	4236P	130.00	43	806101023043
48	37.38	8	48388FDN12	116	690.60	806101030416	4836P	150.30	49	806101023081
60	37.38	8	60388FDN12	165	840.67	806101030423	6036P	180.42	61	806101023128
20	21.38	10	202210FDN12	46	366.13	806101030430	2020P	34.42	10	806101022879
24	21.38	10	242210FDN12	52	371.69	806101030447	2420P	44.96	13	806101022916
24	25.38	10	242610FDN12	58	425.47	806101030454	2424P	50.22	15	806101022923
30	21.38	10	302210FDN12	65	442.21	806101030461	3020P	52.64	16	806101021452
30	25.38	10	302610FDN12	70	454.51	806101030478	3024P	63.04	19	806101022954
36	25.38	10	362610FDN12	81	520.64	806101030485	3624P	75.98	24	806101022985
36	31.38	10	363210FDN12	99	558.07	806101030492	3630P	99.16	30	806101022992
42	31.38	10	423210FDN12	111	640.28	806101030508	4230P	112.42	35	806101023036
42	37.38	10	423810FDN12	129	712.42	806101030515	4236P	130.00	43	806101023043
48	37.38	10	483810FDN12	145	753.84	806101030522	4836P	150.30	49	806101023081
60	37.38	10	603810FDN12	174	874.39	806101030539	6036P	180.42	61	806101023128
30	25.38	12	302612FDN12	76	498.11	806101030546	3024P	63.04	19	806101022954
36	31.38	12	363212FDN12	105	576.00	806101030553	3630P	99.16	30	806101022992
42	31.38	12	423212FDN12	119	677.50	806101030560	4230P	112.42	35	806101023036
42	37.38	12	423812FDN12	136	748.88	806101030577	4236P	130.00	43	806101023043
48	37.38	12	483812FDN12	152	763.94	806101030584	4836P	150.30	49	806101023081
60	37.38	12	603812FDN12	183	852.50	806101030591	6036P	180.42	61	806101023128
36	31.38	16	363216FDN12	109	660.50	806101030607	3630P	99.16	30	806101022992
48	37.38	16	483816FDN12	168	838.82	806101030614	4836P	150.30	49	806101023081
60	37.38	16	603816FDN12	189	1,020.50	806101030621	6036P	180.42	61	806101023128
