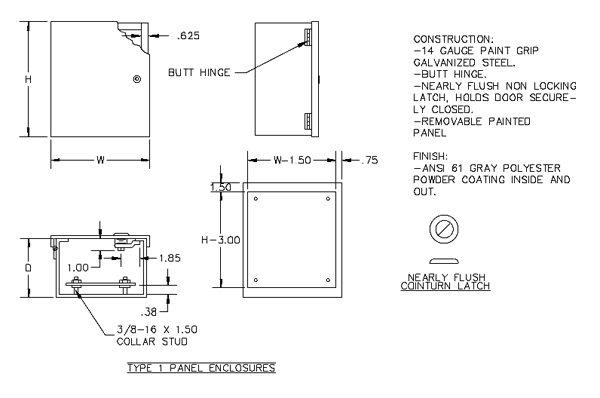

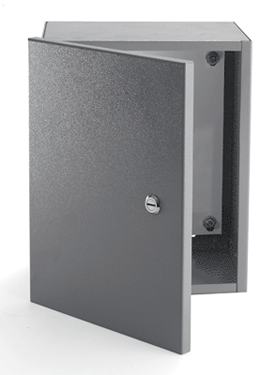

ELECTRICAL ENCLOSURES
| Height" | Width" | Depth" | Catalog Number | Description | Weight | List Price | UPC_12Digit |
|---|---|---|---|---|---|---|---|
| 10 | 10 | 6.63 | 10106HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 10 | $59.68 | 806101007067 |
| 10 | 10 | 6.63 | 10106HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 10 | $75.56 | 806101026587 |
| 10 | 8 | 6.63 | 1086HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 9 | $51.33 | 806101007050 |
| 10 | 8 | 6.63 | 1086HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 9 | $67.21 | 806101026594 |
| 12 | 10 | 6.63 | 12106HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 12 | $63.08 | 806101007074 |
| 12 | 10 | 6.63 | 12106HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 12 | $78.95 | 806101026600 |
| 12 | 12 | 6.63 | 12126HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 15 | $67.02 | 806101007081 |
| 12 | 12 | 6.63 | 12126HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 15 | $82.89 | 806101026617 |
| 14 | 12 | 6.63 | 14126HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 16 | $76.84 | 806101007098 |
| 14 | 12 | 6.63 | 14126HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 16 | $92.71 | 806101026631 |
| 16 | 12 | 6.63 | 16126HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 18 | $136.62 | 806101007104 |
| 16 | 12 | 6.63 | 16126HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 18 | $152.49 | 806101026655 |
| 16 | 16 | 6.63 | 16166HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 27 | $154.63 | 806101007111 |
| 16 | 16 | 6.63 | 16166HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 27 | $170.51 | 806101026679 |
| 20 | 16 | 6.63 | 20166HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 27 | $168.62 | 806101007128 |
| 20 | 16 | 6.63 | 20166HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 27 | $184.49 | 806101026686 |
| 20 | 20 | 6.63 | 20206HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 33 | $190.71 | 806101007135 |
| 20 | 20 | 6.63 | 20206HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 33 | $206.59 | 806101026709 |
| 24 | 16 | 6.63 | 24166HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 39 | $188.76 | 806101007142 |
| 24 | 16 | 6.63 | 24166HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 39 | $204.63 | 806101026723 |
| 24 | 20 | 6.63 | 24206HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 44 | $212.22 | 806101007159 |
| 24 | 20 | 6.63 | 24206HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 44 | $228.10 | 806101026747 |
| 24 | 24 | 6.63 | 24246HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 53 | $238.38 | 806101007166 |
| 24 | 24 | 6.63 | 24246HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 53 | $254.25 | 806101026778 |
| 30 | 20 | 6.63 | 30206HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 60 | $270.86 | 806101007173 |
| 30 | 20 | 6.63 | 30206HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 60 | $286.73 | 806101026792 |
| 30 | 24 | 6.63 | 30246HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 68 | $284.83 | 806101007180 |
| 30 | 24 | 6.63 | 30246HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 68 | $300.70 | 806101026839 |
| 36 | 24 | 6.63 | 36246HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 84 | $314.00 | 806101007197 |
| 36 | 24 | 6.63 | 36246HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 84 | $329.87 | 806101026860 |
| 36 | 30 | 6.63 | 36306HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 97 | $353.08 | 806101007203 |
| 36 | 30 | 6.63 | 36306HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 97 | $368.95 | 806101026907 |
| 12 | 12 | 8.63 | 12128HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 17 | $78.02 | 806101007210 |
| 12 | 12 | 8.63 | 12128HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 17 | $93.89 | 806101026624 |
| 14 | 12 | 8.63 | 14128HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 18 | $83.37 | 806101007227 |
| 14 | 12 | 8.63 | 14128HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 18 | $99.24 | 806101026648 |
| 16 | 12 | 8.63 | 16128HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 20 | $148.22 | 806101007234 |
| 16 | 12 | 8.63 | 16128HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 20 | $164.10 | 806101026662 |
| 20 | 16 | 8.63 | 20168HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 30 | $185.56 | 806101007241 |
| 20 | 16 | 8.63 | 20168HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 30 | $201.43 | 806101026693 |
| 20 | 20 | 8.63 | 20208HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 36 | $206.79 | 806101007258 |
| 20 | 20 | 8.63 | 20208HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 36 | $222.67 | 806101026716 |
| 24 | 20 | 8.63 | 24208HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 42 | $232.41 | 806101007265 |
| 24 | 20 | 8.63 | 24208HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 42 | $248.29 | 806101026754 |
| 24 | 24 | 8.63 | 24248HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 57 | $262.21 | 806101007272 |
| 24 | 24 | 8.63 | 24248HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 57 | $278.08 | 806101026785 |
| 30 | 20 | 8.63 | 30208HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 65 | $287.90 | 806101007289 |
| 30 | 20 | 8.63 | 30208HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 65 | $303.78 | 806101026808 |
| 30 | 24 | 8.63 | 30248HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 69 | $293.63 | 806101007296 |
| 30 | 24 | 8.63 | 30248HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 69 | $309.51 | 806101026846 |
| 30 | 30 | 8.63 | 30308HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 85 | $316.95 | 806101007302 |
| 30 | 30 | 8.63 | 30308HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 85 | $332.83 | 806101026853 |
| 36 | 24 | 8.63 | 36248HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 87 | $331.51 | 806101007319 |
| 36 | 24 | 8.63 | 36248HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 87 | $347.38 | 806101026877 |
| 36 | 30 | 8.63 | 36308HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 97 | $392.41 | 806101007326 |
| 36 | 30 | 8.63 | 36308HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 97 | $408.29 | 806101026914 |
| 42 | 24 | 8.63 | 42248HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 104 | $348.86 | 806101007333 |
| 42 | 24 | 8.63 | 42248HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 104 | $364.73 | 806101026921 |
| 24 | 20 | 10.63 | 242010HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 45 | $253.48 | 806101007340 |
| 24 | 20 | 10.63 | 242010HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 45 | $269.35 | 806101026730 |
| 30 | 24 | 10.63 | 302410HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 83 | $309.17 | 806101007357 |
| 30 | 24 | 10.63 | 302410HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 | 83 | $325.05 | 806101026815 |
| 36 | 30 | 10.63 | 363010HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 111 | $414.14 | 806101007364 |
| 36 | 30 | 10.63 | 363010HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 111 | $430.02 | 806101026884 |
| 24 | 24 | 12.63 | 242412HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 | 66 | $295.67 | 806101007371 |
| 24 | 24 | 12.63 | 242412HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 66 | $311.54 | 806101026761 |
| 30 | 24 | 12.63 | 302412HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 83 | $319.32 | 806101007388 |
| 30 | 24 | 12.63 | 302412HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 83 | $335.19 | 806101026822 |
| 36 | 30 | 12.63 | 363012HL | PAINTED HINGED W/ FBC & PANEL TYPE 1 NON-LOCKING | 110 | $435.86 | 806101007395 |
| 36 | 30 | 12.63 | 363012HLL | PAINTED HINGED W/ FBK & PANEL TYPE 1 KEY-LOCKING | 110 | $451.73 | 806101026891 |
