Type 4, Products

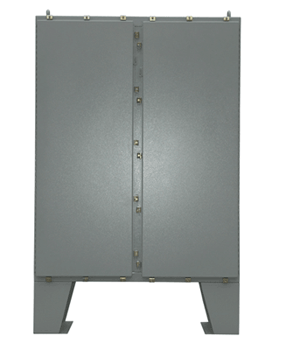

TYPE 4 PAINTED DOUBLE DOOR FLOOR MOUNT HINGED ENCLOSURE W/ CLAMPS

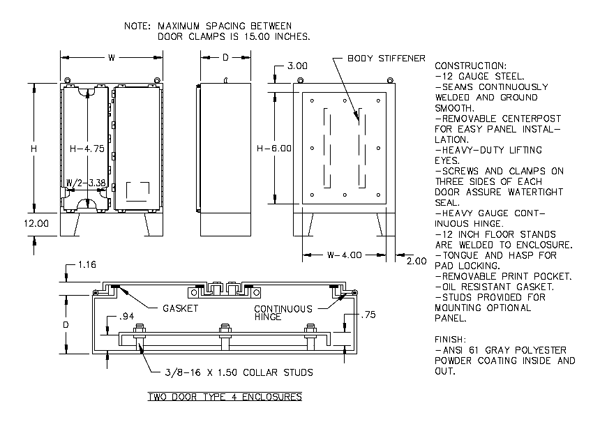

Construction:- SCREWS AND CLAMPS ON THREE SIDES OF EACH DOOR ASSURE WATERTIGHT SEAL
- HEAVY DUTY LIFTING EYES FOR EASY HANDLING
- STAINLESS STEEL HEAVY GAUGE CONTINUOUS HINGE
- REMOVABLE CENTERPOST FOR EASY PANEL INSTALLATION
- 12 INCH FLOOR STANDS ARE WELDED TO ENCLOSURE
- OIL-RESISTANT DOOR GASKET
- 12 GAUGE PAINT GRIP GALVANNEAL STEEL
- PRINT POCKET
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- TONGUE AND HASP FOR PADLOCKING
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
For large quantities or custom sizes call factory
Downloads
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 62x48x10 | D624810N4 | 274.91 lbs | 806101016199 |
| 62x60x12 | D626012N4 | 346.28 lbs | 806101016205 |
| 74x60x12 | D746012N4 | 402.43 lbs | 806101016212 |
| 74x72x12 | D747212N4 | 469 lbs | 806101016229 |
