Type 12, Products

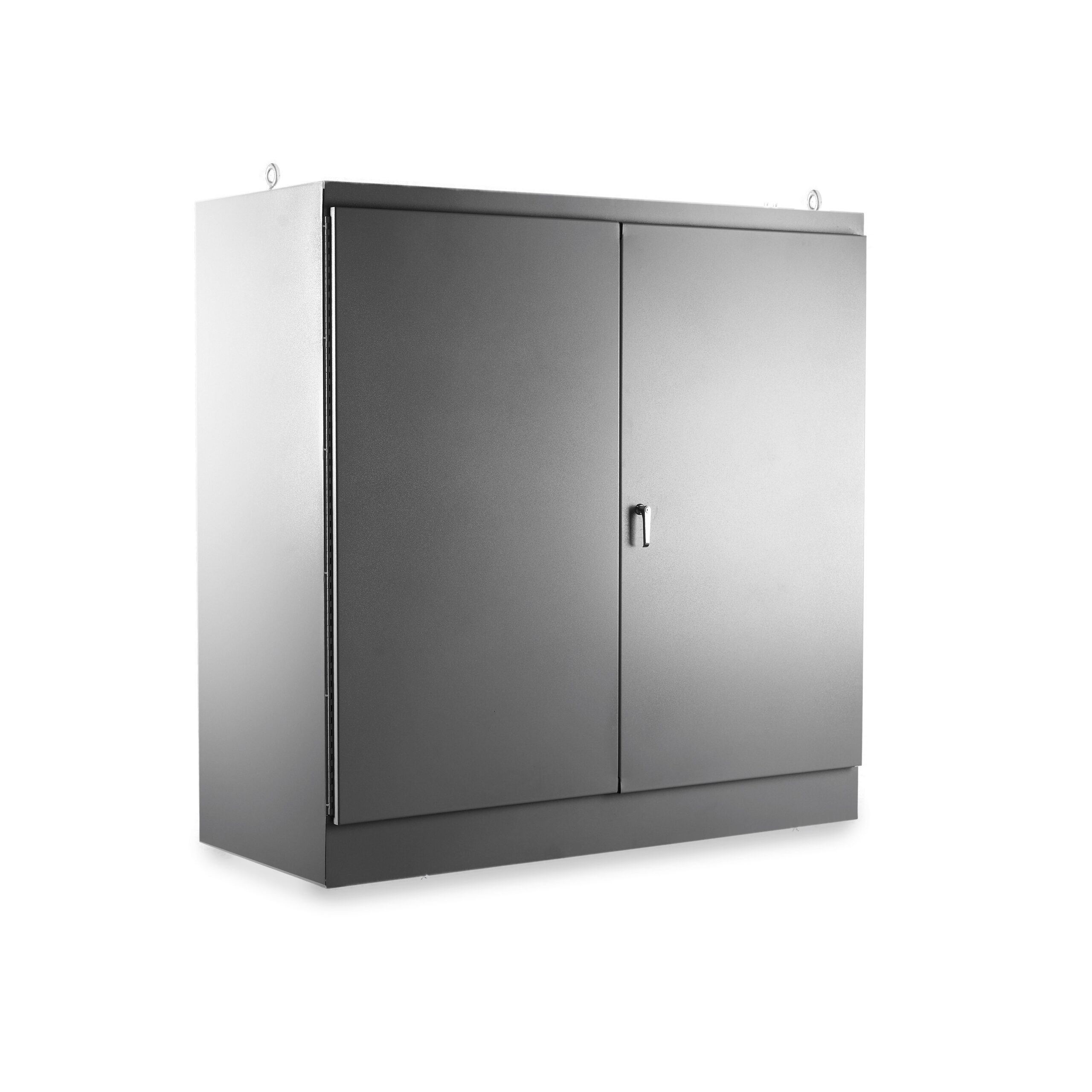

TYPE 12 PAINTED FREESTANDING DOUBLE DOOR DUAL ACCESS ENCLOSURE

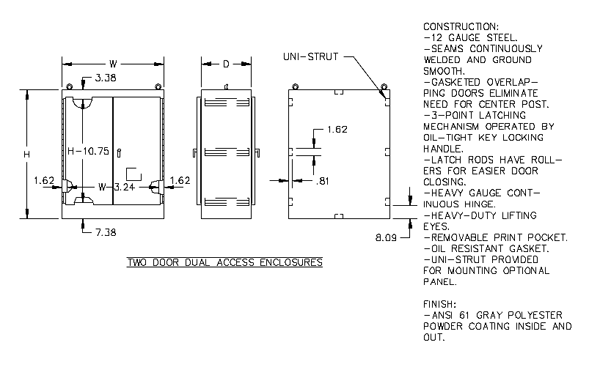

Construction:- PRINT POCKET
- HEAVY DUTY LIFTING EYES
- HEAVY GAUGE CONTINUOUS HINGE
- LATCH RODS HAVE ROLLERS FOR EASIER DOOR CLOSING
- 3 POINT LATCHING MECHANISM OPERATED BY OIL TIGHT KEYLOCKING/PADLOCKING L-HANDLE
- GASKETED OVERLAPPING DOORS FRONT AND BACK ELIMINATE THE NEED FOR CENTERPOST
- 12 GAUGE PAINT GRIP GALVANNEAL STEEL CODE GAUGE PAINT GRIP GALVANIZED STEEL
- STUDS PROVIDED FOR MOUNTING OPTIONAL PANEL
- OIL RESISTANT GASKET
- SEAMS CONTINUOUSLY WELDED AND GROUND SMOOTH
- ANSI 61 GRAY POLYESTER POWDER COATING INSIDE AND OUT OVER PAINT GRIP GALVANIZED STEEL
Indoor use to provide a degree of protection against dust, dirt, fiber, flyings, dripping water and external condensation of non corrosive liquids.
For large quantities or custom sizes call factory
| Enclosure Size HxWxD | Catalog Number | Weight | UPC_12Digit |
|---|---|---|---|
| 72x48x24 | DFDA724824N12 | 418 lbs | 806101018599 |
| 72x60x24 | DFDA726024N12 | 492 lbs | 806101018605 |
| 72x72x24 | DFDA727224N12 | 566 lbs | 806101018612 |
| 90x72x24 | DFDA907224N12 | 677 lbs | 806101018629 |
| 72x60x36 | DFDA726036N12 | 591 lbs | 806101018636 |
